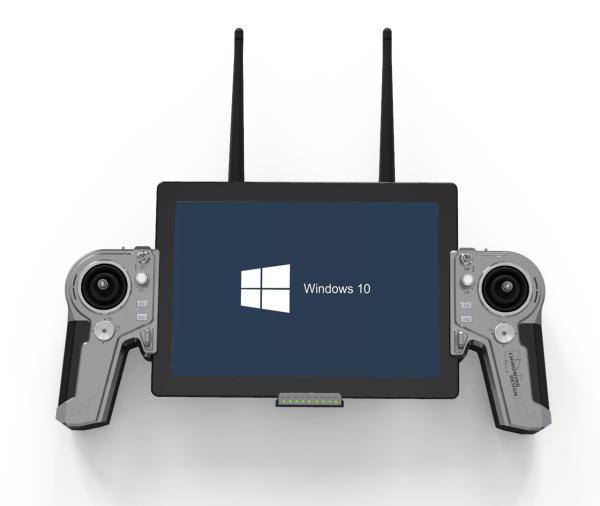

T16 is a compact portable GCS that enables safe and easy operation of the drone and its payload, especially suitable for individual operation.
Supporting Windows and Android systems, T16 can control the aircraft, the payload, display real-time flight status and remote control status, which supports mainstream tablets and mobile phones.
Military grade data link ensures the safety and stability of the flight.
Easy operation and transportation. It has been widely used in unmanned aerial vehicle, ground robots, bomb disposal robots, remotely operated vehicles (ROV) and other robotic devices.
Product Features
Main and secondary joysticks, programmable dual SBus independent output
10 linear channels meeting various control demand Multiple joystick options, left and right handed mode, back center mode, industrial hall effect joystick
Universal platform, compatible with the most flight controllers Remote control, telemetry data, real-time HD video display, suitable for individual operation
The physical channel supports USB HID input to the computer, with up to 8 quick buttons available for quick ground station operation Long endurance, up to 8h with full battery capacity, meanwhile supporting external battery powering.
Programmable dual SBus independent output, able to control the payload and the drone
800MHz,1.4GHz,2.4GHz can be chosen in the software, communication range 10km+
Remote controller T16
Overall weight: 1060g
Dimension: 290mm*150mm*60mm
Operation temperature: -10~+60℃
IP rating: IP53
RF power: 0.1-0.5w
Remote control latency: 30ms
Ground unit of video link: Built-in
Power supply: 8.4V/6800mAh built-in battery, external battery supported
Endurance: 8h@full battery capacity
Mobile device: Support 5-10.1inch tablet or phone
Operation system: Windows/Android
Remote control range: 10km grade@LOS condition
Channel: 22
Main joystick: 2 (left and right handed mode/back center mode/Hall effect)
Auxiliary joystick: 2
3-position switch: 4
Knob : 2
Key button: 8
Pull wheel: 2
Interface: SBUS port /Dual SBUS ports with HID input
External interface: USB3.0
V21(10Km grade video&data& link)
Frequency: 800MHz(806-826MHz)
1.4GHz(1427.9-1447.9MHz)
2.4GHz(2401.5-2481.5MHz) 3 frequency modules integrated in one, frequency can be modified in the software.
Power voltage: 7.4v-12v XT30
Bandwidth: 3M/5M/10M/20M
Operation current: 300mA@12v power supply
Operation temperature: -10~+50℃
RF power: 0.1w-1w
Antenna: 2-4dB rod antenna
Weight: 110g(exclude antennas)
Dimension: 85mm*55mm*20mm
Video input interface: LAN
Serial port: TTL or RS232
SBUS port: 2pcs
