T21 Highly-Integrated Ground Control Station With Long Range Control And Command For UAV, UGV, USV, ROV, Robotic Systems
T21, built on the Intel-based PC, is a universal ground control solution that can be configured not only for UAVs but also for ground robots,
ROVs and other remote-controlled devices. The Telemetry&RC link developed on the P900 module is integrated into the T21 Ground Control System.
The overall weight is only 1kg, easy to carry, and easy to use.
It provides various functions, such as mission planning, attitude control, payload control, navigation & positioning, and remote monitoring. It has been widely used in defense, commercial applications,
Product Features
- Industrial grade computer with GPS
- 2 main joysticks and 2 auxiliary joysticks
- Multiple joystick options: left and right-handed mode, back center mode, industrial hall effect joystick
- 10 linear channels meeting various control demand
- Network: WIFI/Bluetooth/4G
- Front and rear cameras that can do face verification to unlock the computer to secure aircraft controls.

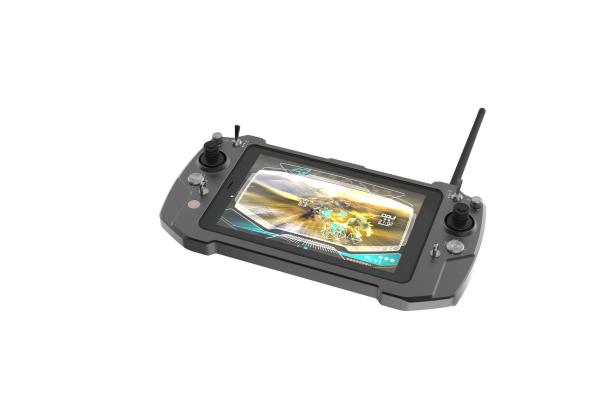

Remote controller T21
Overall weight: 1000g
Dimension: 300mm*160mm*40mm
Operation temperature: -10~+50℃
IP rating: IP53
RF power: 0.1-1w(adjustable)
Remote control latency: 30ms
Antenna: 2dB rod antenna
Package dimension: 370mm*285mm*105mm
Channel: 16 programmable Channels
Main Joystick: 2 ((left and right-handed mode/ back to center mode/Hall effect)
Auxiliary joystick: 2
3-position switch: 4
Knob: 2
Key button: 2
Interface
SBUS port: Dual SBUS ports with HID input
External interface: USB2.0
Charging port: TYPC 5V
Computer
Display Screen: 8inch/1280*720
Brightness: 350CCD
CPU: Intel Cherry Trail Z8350
Memory: 4G
Hard disk: 64G
Network: WIFI/Bluetooth/4G
Operating system: Win10(standard)
Touch panel: 10 points capacitive touch screen
Battery: 3.7V/7500mAh
Endurance: 4h
Loudspeaker: Built-in
Airborne unit
R20 telemetry&RC link
Frequency: 900MHz(902-920MHz) Mircohard P900 module
Transmission range: 5km-50km(Depend on the environment)
Power voltage: 7.4v-12v
Operation current: 100mA@12v power supply
Operation temperature: -10~+50℃
RF power: 0.1w-1w
Antenna: 2dB rod antenna
Weight: 43g(exclude antennas)
Dimension: 53mm*40mm*14mm
Interface: Serial port*1
SBUS port: 2
Power input interface: XT30
