12.6V Tactical Video Data Link 840MHZ/900MHZ WIFI Bluetooth

Name: 126V Tactical Video Data Link 840MHZ900MHZ WIFI Bluetooth
Brand: CHINOWING
Price: 658.98 USD

Best 12.6V Tactical Video Data Link 840MHZ/900MHZ WIFI Bluetooth wholesale

Brand Name : CHINOWING

Place of Origin : CHINA

MOQ : 1

Supply Ability : 1-10000PCS

Delivery Time : 2-8 works

Model Number : D04

Price : USD$658.98

Payment Terms : T/T

Color : Silver

Dimension : 113mm*113mm*44mm

Weight : 690g

Frequency : 840MHZ/900MHZ(adjustable)

Power : 0.1-1W(dajustable)

Baud rate : 1200-230400bps(adjustable)

Built-in battery : 3000mAh(12V 18650 3S battery)

Operation current : 300mA

Power supply : 12.6V

Duration : 15h

Operational temperature : -10--60℃

Wireless : WIFI+Bluetooth

WIFI range : 1-15M

Connection : Type-C WIFI

Contact Now

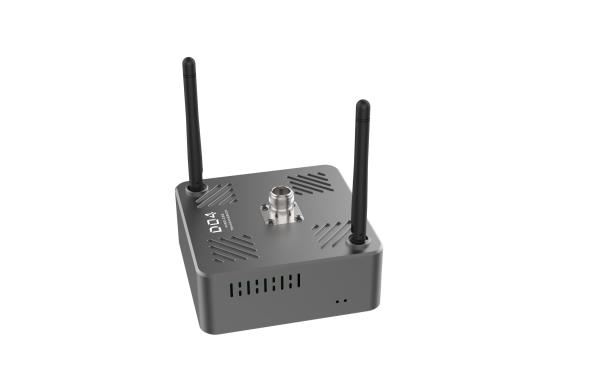

D04 drone telemetry&RC transmission device

The D04 is a data transmission device wirelessly connected to the computer, which is particularly suitable for surveying and mapping. It can transmit two S-Bus signals and data transmission signal simultaneously. It is mainly used to solve the problem of short transmission range and low transmission quality of remote control and data transmission signals.

Working in 915MHZ frequency band, D04 the maximum communication distance can reach 30KM.

Features

Flexible layout

Computer can be wirelessly connected to the ground unit

Remote control range is extended

Wirelessly connected to the computer

50KM transmission range,0 packet loss

12.6V Tactical Video Data Link 840MHZ/900MHZ WIFI Bluetooth

Parameters

Frequency : 902-928MHz(Microhard P900)

Baud rate: 1200-115200(adjustable)

Operation current: 300mA

Operation temperature: -10- +60℃

Power: 0.1w-1w(adjustable)

Power supply (air borne unit): DC7.4 - 12V (2S-3S Li battery)

Casing material: Aluminium alloy

Built-in battery (ground unit) : 12v 18650 3S battery

Color: Silver gray

Weight: 43g

Dimension: 113mm*113mm*44mm
